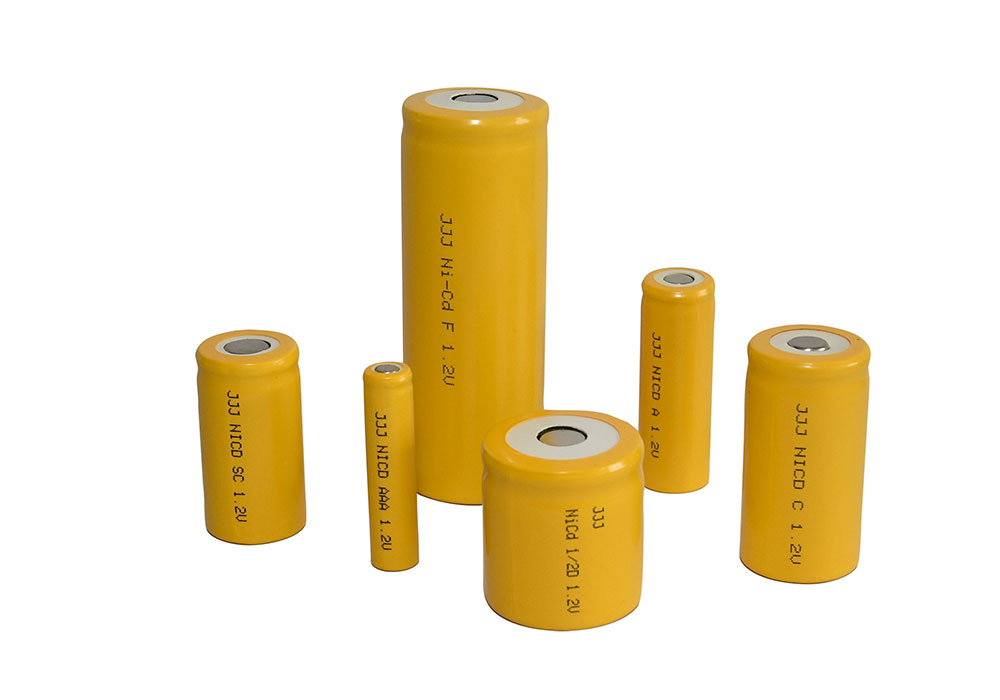

鎳鎘電池
◆ 產品型號廣泛
◆ 可按照客戶具體要求定制
◆ 可生產不同容量和尺寸的充電電池組
江門三捷鎳鎘電池主要應用于：安防產品，電動玩具，個人護理工具，掃地機器人，手持吸塵器，探測儀，醫療設備，應急燈等......
規格參數
| 類 型 | 型 號 | 額定電壓/V | 額定容量/mAh | 高度/mm | 直徑/mm |
|---|
| * | AAA | J-AAA400A | 1.2 | 400 | 44.0±0.5 | 10.0±0.1 | |
| * | AAA | J-AAA400B | 1.2 | 400 | 42.7±0.5 | 10.0±0.1 | |
| AA | J-AA600A | 1.2 | 600 | 49.5±0.5 | 13.9±0.1 | ||
| AA | J-AA600B | 1.2 | 600 | 48.0±0.5 | 13.9±0.1 | ||
| AA | J-AA700A | 1.2 | 700 | 49.5±0.5 | 13.9±0.1 | ||
| AA | J-AA700B | 1.2 | 700 | 48.0±0.5 | 13.9±0.1 | ||
| AA | J-AA800A | 1.2 | 800 | 49.5±0.5 | 13.9±0.1 | ||
| AA | J-AA800B | 1.2 | 800 | 48.0±0.5 | 13.9±0.1 | ||
| AA | J-AA900A | 1.2 | 900 | 49.5±0.5 | 13.9±0.1 | ||
| AA | J-AA900B | 1.2 | 900 | 48.0±0.5 | 13.9±0.1 | ||
| AA | J-AA1000A | 1.2 | 1000 | 49.5±0.5 | 13.9±0.1 | ||
| AA | J-AA1000B | 1.2 | 1000 | 48.0±0.5 | 13.9±0.1 | ||
| 2/3AA | J-2/3AA400B | 1.2 | 400 | 28.1±0.5 | 13.9±0.1 | ||
| 2/3AA | J-2/3AA500B | 1.2 | 500 | 28.1±0.5 | 13.9±0.1 | ||
| 7/5AA | J-7/5AA1200B | 1.2 | 1200 | 64.5±0.5 | 13.9±0.1 | ||
| A | J-A1400B | 1.2 | 1400 | 49.0±0.5 | 16.6±0.1 | ||
| * | A | J-A1600B | 1.2 | 1600 | 49.0±0.5 | 16.6±0.1 | |
| 4/5A | J-4/5A1200B | 1.2 | 1200 | 42.1±0.5 | 16.6±0.1 | ||
| 7/5A | J-7/5A1800B | 1.2 | 1800 | 66.2±0.5 | 16.6±0.1 | ||
| SC | J-SC1300B | 1.2 | 1300 | 42.0±0.5 | 22.0±0.1 | ||
| SC | J-SC1500B | 1.2 | 1500 | 42.0±0.5 | 22.0±0.1 | ||
| SC | J-SC1600B | 1.2 | 1600 | 42.0±0.5 | 22.0±0.1 | ||
| SC | J-SC1800B | 1.2 | 1800 | 42.0±0.5 | 22.0±0.1 | ||
| SC | J-SC2000B | 1.2 | 2000 | 42.0±0.5 | 22.0±0.1 | ||
| * | SC | J-SC2200B | 1.2 | 2200 | 42.0±0.5 | 22.0±0.1 | |
| 1/2SC | J-1/2SC700B | 1.2 | 700 | 25.5±0.5 | 22.0±0.1 | ||
| 4/5SC | J-4/5SC1200B | 1.2 | 1200 | 32.5±0.5 | 22.0±0.1 | ||
| C | J-C2500A | 1.2 | 2500 | 49.5±0.5 | 25.2±0.1 | ||
| C | J-C2500B | 1.2 | 2500 | 49.0±0.5 | 25.2±0.1 | ||
| C | J-C2800A | 1.2 | 2800 | 49.5±0.5 | 25.2±0.1 | ||
| C | J-C2800B | 1.2 | 2800 | 49.0±0.5 | 25.2±0.1 | ||
| 1/2C | J-1/2C750A | 1.2 | 750 | 24.8±0.5 | 25.2±0.1 | ||
| D | J-D4000A | 1.2 | 4000 | 60.5±0.5 | 32.1±0.1 | ||
| D | J-D4000B | 1.2 | 4000 | 59.0±0.5 | 32.1±0.1 | ||
| D | J-D4500A | 1.2 | 4500 | 60.5±0.5 | 32.1±0.1 | ||
| D | J-D4500B | 1.2 | 4500 | 59.0±0.5 | 32.1±0.1 | ||
| D | J-D5000A | 1.2 | 5000 | 60.5±0.5 | 32.1±0.1 | ||
| D | J-D5000B | 1.2 | 5000 | 59.0±0.5 | 32.1±0.1 | ||
| 1/2D | J-1/2D2500A | 1.2 | 2500 | 36.5±0.5 | 32.1±0.1 | ||
| 1/2D | J-1/2D2500B | 1.2 | 2500 | 35.0±0.5 | 32.1±0.1 | ||
| F | J-F7000B | 1.2 | 7000 | 89.0±0.5 | 32.1±0.1 | ||
| F | J-F8000B | 1.2 | 8000 | 89.0±0.5 | 32.1±0.1 | ||
| 備注：A-代表尖頭；B-代表平頭；*-代表需滿足最低訂單量 | |||||||
